Node
Node types
- Energy monitoring
- Powered by battery or on main
- 2 Hal, 1 Strait
- 4 current sensors
- Environment sensors
- Relay nodes
- Powered by main
- Can switch N relays
- Can measure current through each relays
- Environment sensors
- Switch nodes
- Powered by main
- Fits in wall sockets
- Has N push buttons
- Has N leds
Pin Assignment
Requirements
- Two HAL : 2 Dig
- One Dry Pulse : 1 Digi
- Temp and Humidity : I2C
- VIn : 1 Ana + 1 Digi (trigger)
- Two Push Buttons (2 Digi)
- 4 Digital Output (4 Digi)
Total :
- I2C
- 1 Ana
- 8 Digi
- 1 Interrupt
Notes
- One interupt pin can be used to monitor multiple inputs with the helps of diodes
- Digital inputs can be extended with I2C Digital extender
- Analog inputs can be extended with ADS1515
- We can easely read 5 digital inputs on an analog input with the help of a tension divider
Assignment

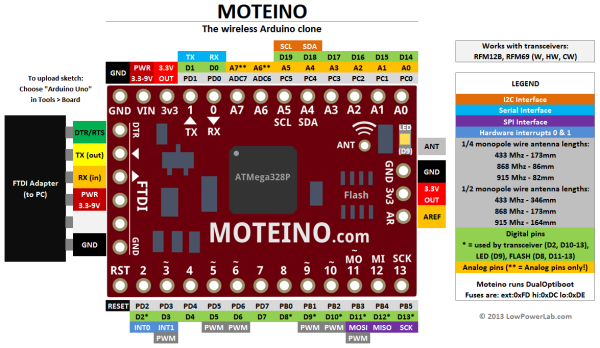

The moteino has 22 a/d pins from which some are reserved for the internal use of the moteino (flash, rf)
- D0,1 : Serial
- D2,10-12 : Transceiver
- D3 : Interrupt
- D4 : HAL1
- D5 : HAL2
- D6 : Dry Pulse 1
- D7 : Vin Trigger
- D8,11-13 : Flash
- D9 : LED
- D14 : Free
- D15 : Free
- D16 : Free
- D17 : ConfigReset
- D18,19 : I2C
- A6 : Vin
- A7 : Free (Could be up to 5 input based on voltage divider)
- I2C 8 Port Extender : DOUN 1-8
MCP23018 Allow 16 Digital I/O with interrupt to control 5 relays, 5 push buttons and 5 leds
Components
- Current Measurement : testing TA12-200 (5A as low as 1.25$ on AliExpress, used in Grove)
